GFCI and USB Charging Combination 15 Amp Outlet

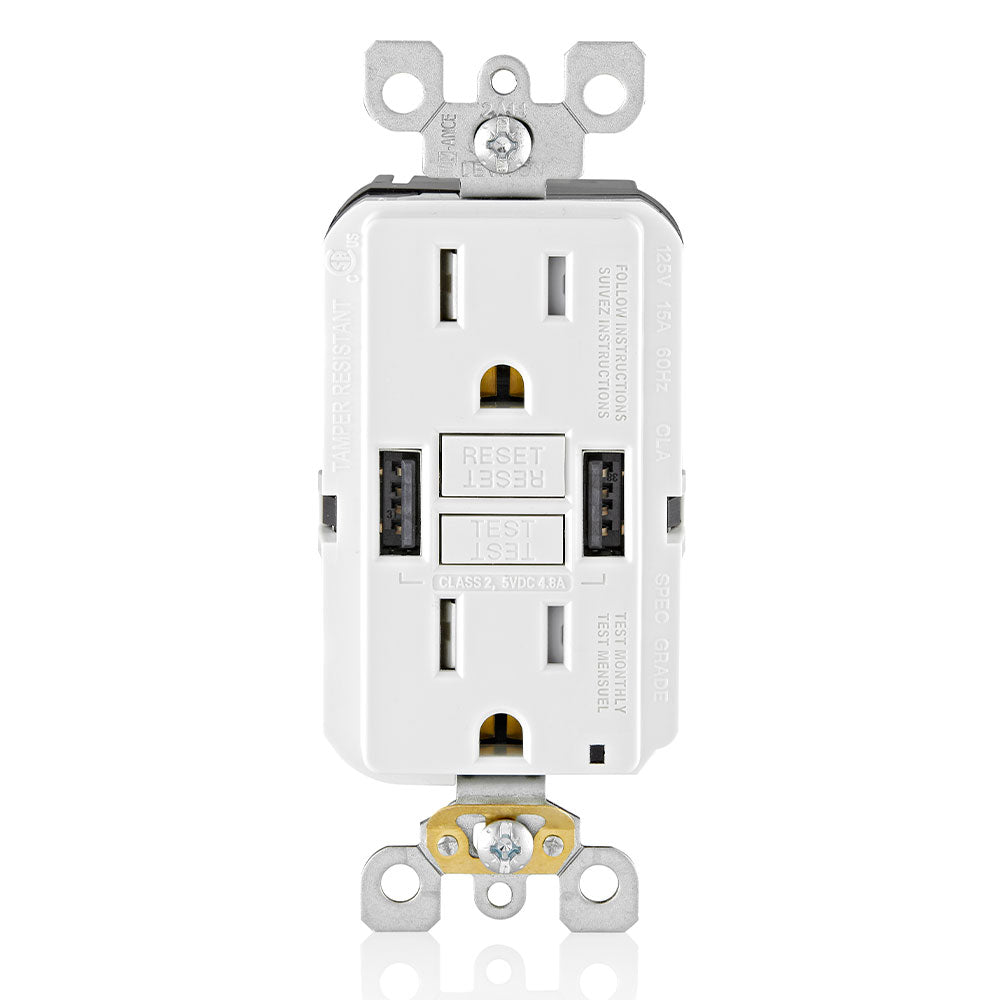

The Leviton GUSB1-W is a wall power outlet that provides a dual function containing both integrated GFCI and two USB charging ports. The outlet plugs are tamper resistant (TR) and will meet NEC 406.12 code anywhere that a GFCI outlet is required.
GFCI Protection with Tamper Resistant Plugs
The receptacle provides ground fault protection, it will constantly self-test to make sure that the current running into the outlet meets specifications. There are color-matched reset and test button on the outlet, as well as an indicator light. The SmartlockPro feature will disconnect power to the receptacle if any critical component becomes damaged.
The plugs are tamper resistant and have integrated shutters so children can't insert any objects in the plugs and risk electrocution.
Dual USB Type A Charging Ports
The outlet features two USB-A charging ports, they offer 2.4 Amps (12 Watts) of charging on each port for a total of 4.8 Amps and 24 Watts. They are smart charging ports and will deliver the most amount of power that the device can safely handle. The ports are tested to withstand at least 10,000 insertions without breaking. The USB ports are compatible with USB 3.1, 3.0, 2.0, and 1.1 USB devices. Now you don't have to use a bulky and unsightly adapter to provide USB charging on a GFI outlet, it is now built-into the outlet.
Install In an Extra Deep Outlet Box
The outlet will need to be installed in an extra deep wall box. The outlet has wire leads to quickly attach your wires to the outlet. The outlet is spec grade and UL listed for indoor and commercial applications.
The combo GFCI/USB receptacle is perfect for kitchens, bathrooms, laundry rooms, garages, basements, or anywhere that safe and protected power and charging is needed to meet NEC code. The outlet is UL listed for the USA, and CSA listed for Canada. The outlet meets UL code 943 Class A and 498, and CSA C22.2-144.1 and 42.
Specifications:
Color: White
Amperage: 15
Wall plate not included
GFCI self-testing
Two USB-A charging ports
Smart charging 4.8 Amp ports
Requires extra deep wall box
Tamper resistant (TR) plugs
Depth: 1.75"
Installs with wire leads
UL listed and CSA approved
Install using a licensed electrician
Residential and commercial applications
Warranty: 2 years
Brochure (PDF)
Installation Instructions (PDF)
Color: White
Amperage: 15
Wall plate not included
GFCI self-testing
Two USB-A charging ports
Smart charging 4.8 Amp ports
Requires extra deep wall box
Tamper resistant (TR) plugs
Depth: 1.75"
Installs with wire leads
UL listed and CSA approved
Install using a licensed electrician
Residential and commercial applications
Warranty: 2 years
Brochure (PDF)
Installation Instructions (PDF)
