Sillites 15 Amp 2" Round Power Outlet in White

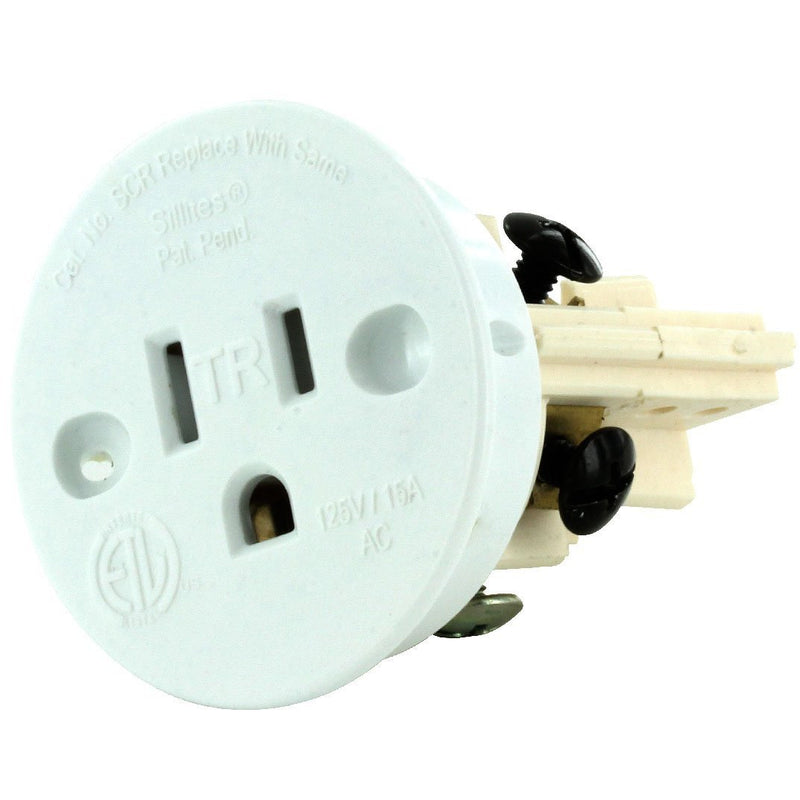

The Sillite SCRW is an extremely small 120 volt 15 Amp 3-prong power receptacle, they are easy to install and discreetly hide in any wood location. They are perfect for unique locations, or those situations where you don't want a traditional ugly white outlet. Ships as quantity 50 units.
The Smallest Self Contained Receptacle Made with Paintable Cover

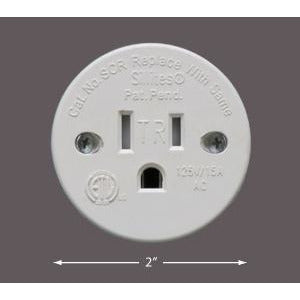

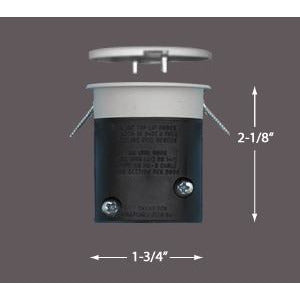

The top diameter is a meager 2" in size, and the cutout hole size is only 1.75". The flange that sits on the floor is super thin measuring only .08" thick, this creates an almost flush appearance when installed. The outlet can install in any wood surface that a 1.75" hole can be made, and has 2 1/8" of depth space available.There is an included matching white cover cap you can snap on when the outlet isn't being used to create a clean look when not in use. Optionally the cover cap is paintable allowing it to blend into any surface. With the cover cap installed the thickness is only .14".
Easy Installation, No Junction Box Needed!

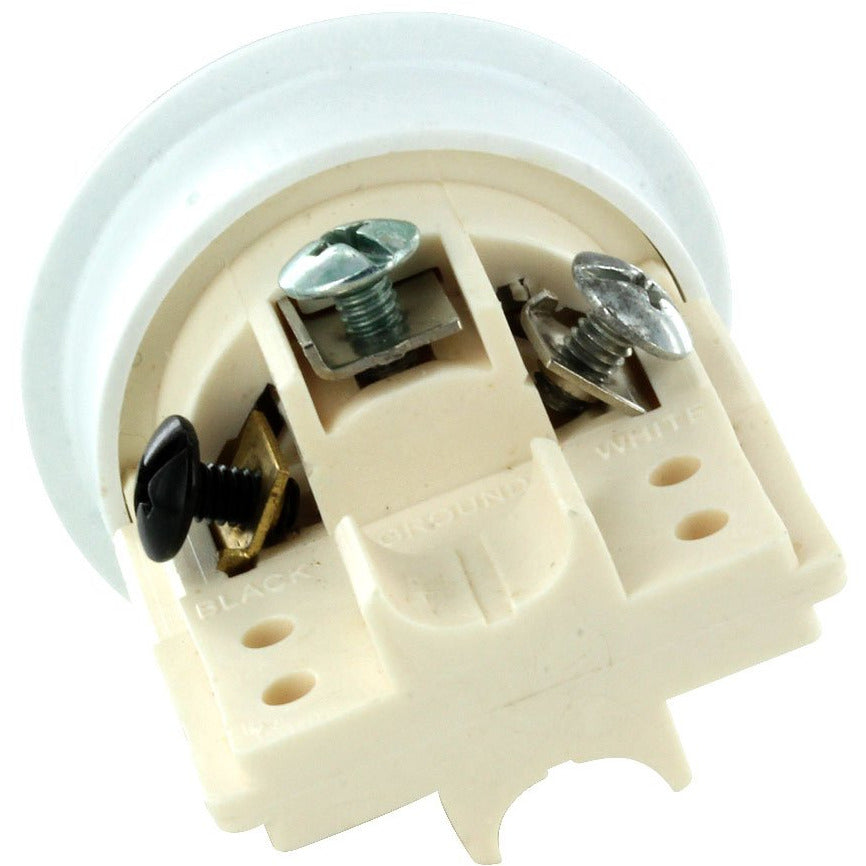

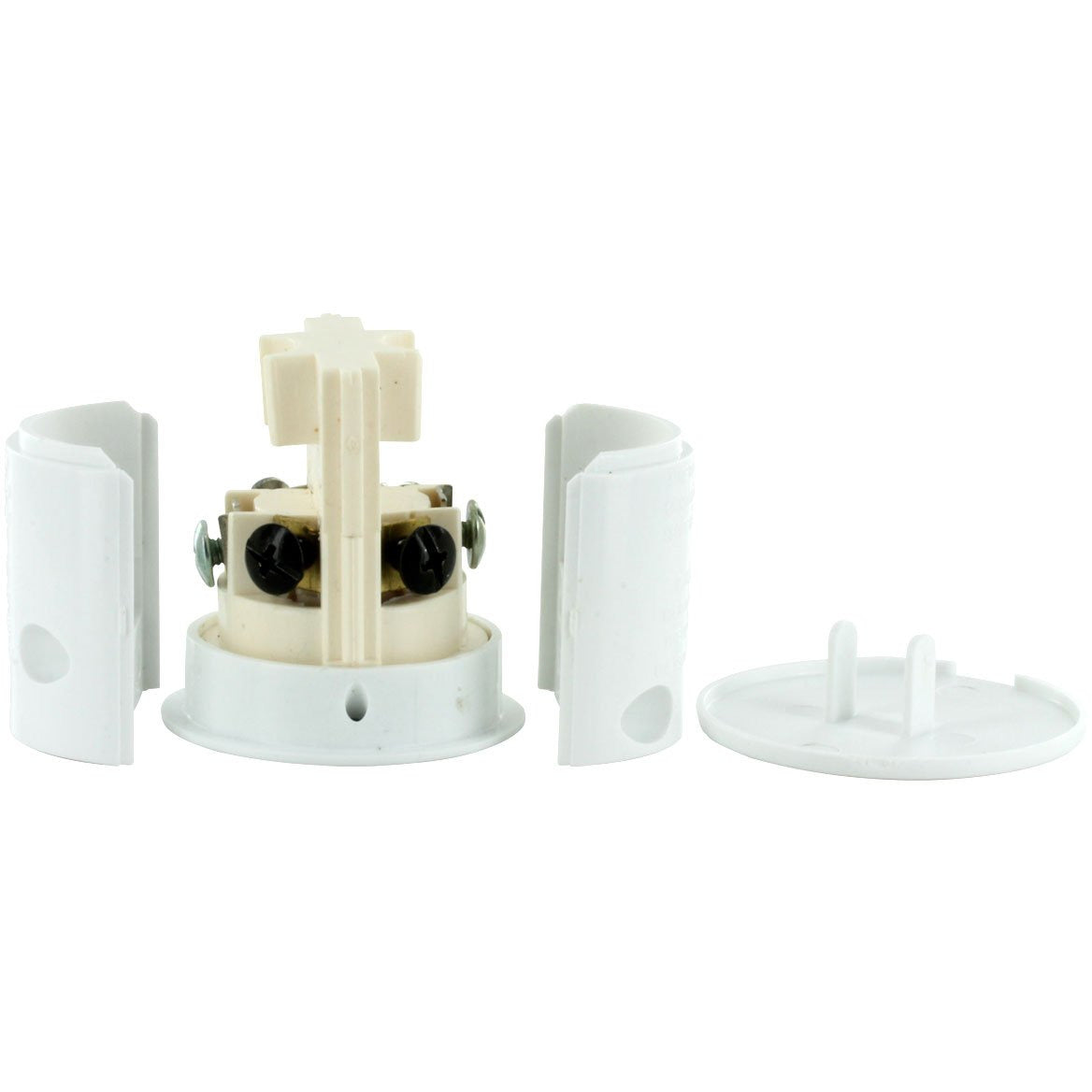

The outlet can be installed in cabinets, islands, baseboards, mantels, window sills, or any wood surface that you can think of. You don't need to cut a large hole for a junction box, the unit is completely self contained with doors that cover the terminals. Simply cut a 1.75" hole, wire up the receptacle, and screw into the wood surface with the included screws and you are done.
The outlet can be installed with 12/2 or 14/2 Romex wire, the outlets are even daisy-chainable so you can install multiple off of one wire run. The receptacle is tamper resistant meeting NEC code 406.11, the unit is also ETL listed.
Specifications:
Color: White
Quantity: 50
Includes paintable cover cap, terminal doors, and screws
2" top diameter
1.75" cutout hole size
Top flange thickness is only .08"
Depth is 2 1/8"
Requires no junction box
15 Amp tamper resistant (TR) plugs
ETL listed
Installs with 12/2 or 14/2 Romex
Daisy-chainable
Install using a licensed electrician
Designed for indoor installations only
1 year warranty
Sillites SCR Installation Instructions (PDF)
Color: White
Quantity: 50
Includes paintable cover cap, terminal doors, and screws
2" top diameter
1.75" cutout hole size
Top flange thickness is only .08"
Depth is 2 1/8"
Requires no junction box
15 Amp tamper resistant (TR) plugs
ETL listed
Installs with 12/2 or 14/2 Romex
Daisy-chainable
Install using a licensed electrician
Designed for indoor installations only
1 year warranty
Sillites SCR Installation Instructions (PDF)
