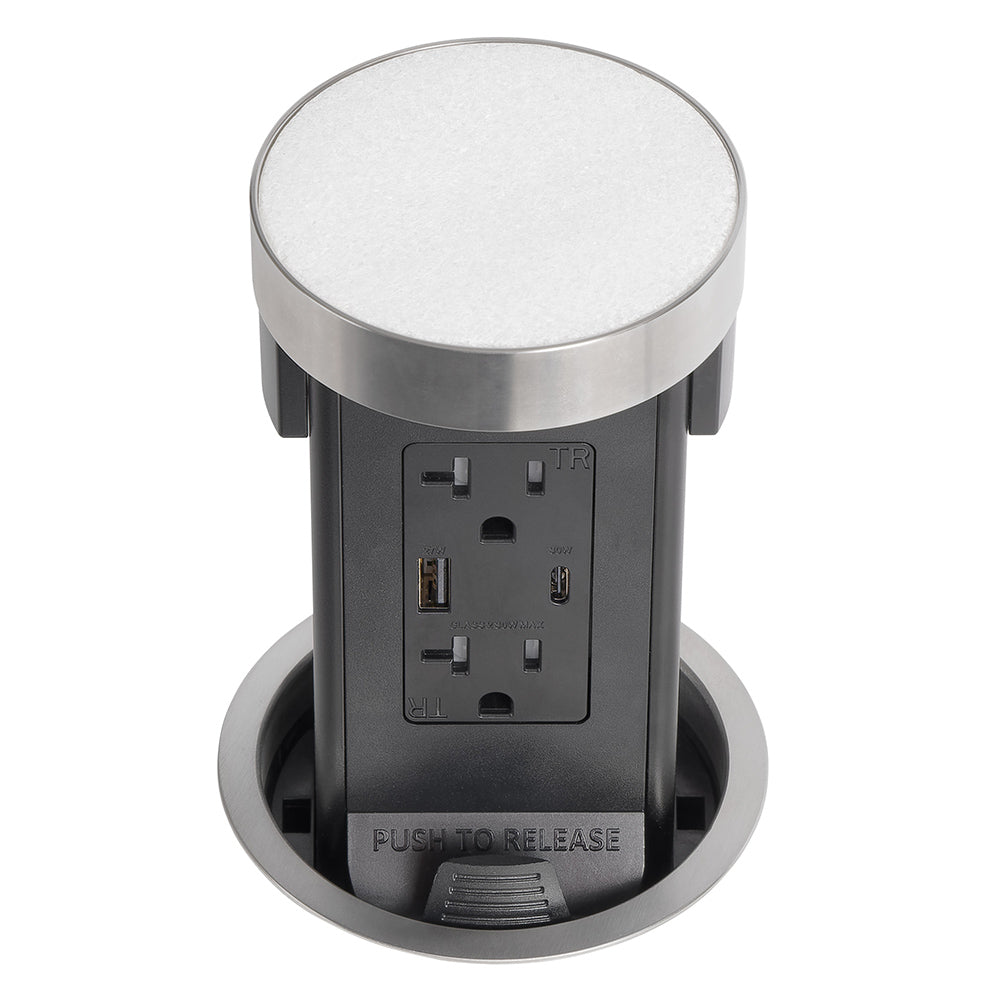

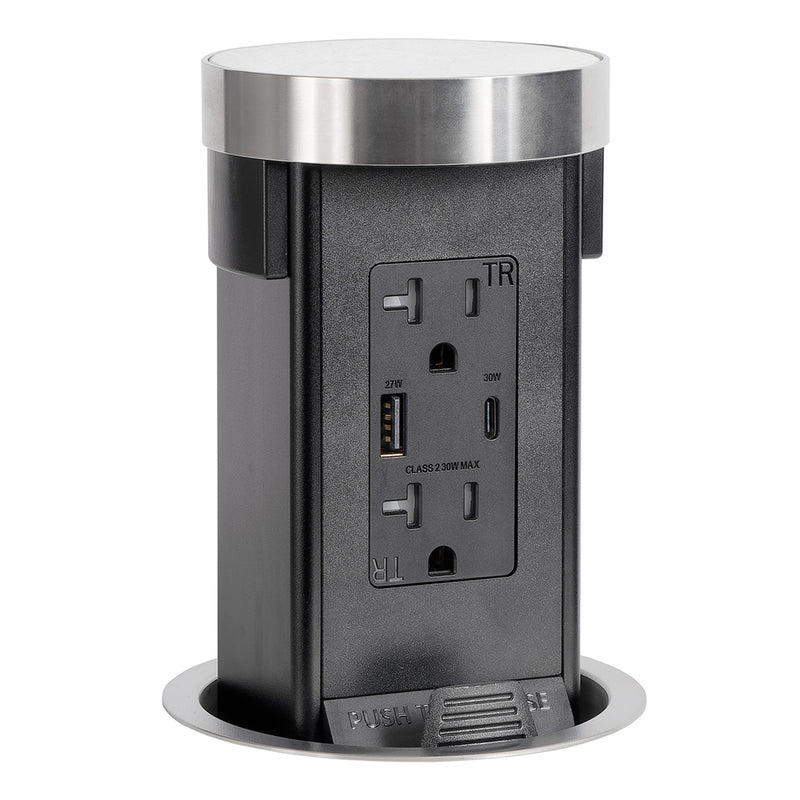

Lew Electric PUR20ACFCMRD-SS Countertop Pop Up Outlet With Stone Top
Bring code-compliant power directly to your countertop while maintaining a clean, uncluttered surface. The retractable pop-up outlet remains hidden beneath the counter until needed, then pops up to provide high-capacity appliance power and fast USB charging exactly where you need it.
Designed specifically for kitchens and wet locations, this unit allows you to install the actual stone cutout from your countertop into the top cup, creating a seamless, nearly invisible installation.
Seamless "Use Your Countertop Material" Installation

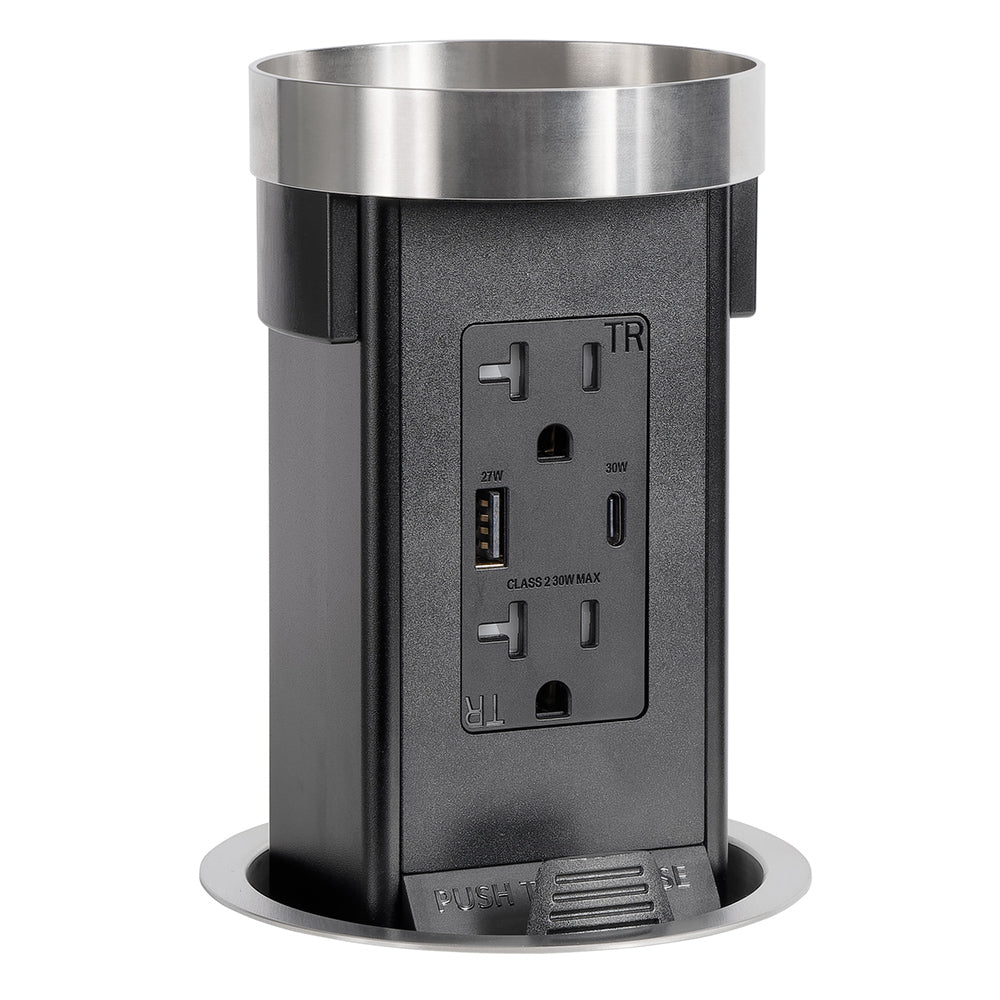

This model is designed to accept the countertop cutout disc so the outlet visually disappears when closed.
Countertop & Stone Requirements
• Countertop hole size: 3.75" diameter
• Stone disc diameter for cup insert: 3.175"
• Required stone thickness for disc: 0.5"

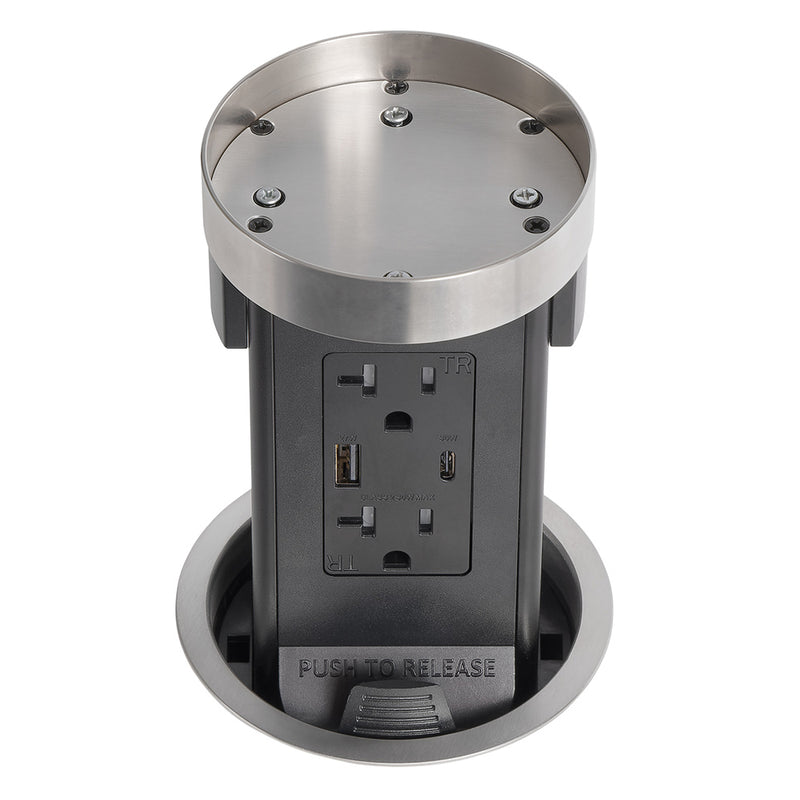

• Cup leveling adjustment: 0.08" via three set screws
If the stone disc is slightly uneven or thin, the built-in set screws allow the fabricator to precisely level and secure the insert.
Built for Code-Compliant Kitchen and Wet Locations
This pop-up is fully certified for countertop installations in both the USA and Canada.
Certifications & Listings
• Meets 2023 NEC 406.5(E)
• UL Listed receptacles
• ETL Listed complete assembly (USA)
• cETL & CSA approved (Canada)
• Tamper-Resistant (TR) receptacles
• IP43 rated spill and dust protection
Ideal for kitchens, islands, wet bars, and other areas requiring recessed countertop power.
1/2 Gallon Spill Protection
Engineered to protect cabinets and wiring from real-world kitchen spills.
• Passed UL ½-gallon spill test
• Rated to UL 498 Section 147
• Integrated gasket seals trim ring to countertop
• Prevents liquids from entering cabinet cavity when closed
This is a major requirement for modern NEC-compliant pop-up outlets.
340 Degree Rotating Pop Up for Perfect Positioning
When extended, the outlet rotates 340 degrees, allowing you to aim the receptacles toward appliances or away from splashes.
High-Power 20A Outlet and Fast USB Charging
20 Amp Tamper-Resistant Receptacles
• NEMA 5-20R configuration
• Supports high-draw kitchen appliances
• Backward compatible with 15A plugs
• Ideal for:
– Coffee makers
– Blenders
– Toaster ovens
– Warming trays
USB Fast Charging
USB-A Port
• Up to 27W output
• Quick Charge QC 3.0
USB-C Port
• Up to 30W output
• Power Delivery PD 2.0
• Can charge phones, tablets, and laptops
Power and charge up to 4 devices simultaneously.
Hidden Power Wherever You Need It
Perfect for residential and commercial environments:
• Kitchen countertops & islands
• Pantry appliance stations
• Bars & coffee stations
• Garage workbenches
• Closets & craft rooms
• Hotels, restaurants & airports
Compatible with granite, quartz, marble, concrete, wood, and laminate surfaces 3/8" to 2-3/16" thick.
Why Choose a Lew Electric Countertop Pop Up?
• Keeps cords off counter edges
• Provides code-required countertop power
• Maintains a clean, minimalist look
• Designed for real kitchen spill protection
• Supports modern USB-C fast charging
• Built for professional fabricator installation
Specifications:
Color: Stainless steel metal top
Outlet: 20 Amp, 2 charging USB
USB-A: QC 3.0 rated, 27W
USB-C: PD 2.0 rated, 30W
340-degree rotation
Tamper-resistant (TR) plugs
Meets 2023 NEC code 406.5E for countertops
ETL listed for USA installations, # 4004534
cETL listed for Canada installation, # 4004534
CSA approved for Canada, #C22.2
Conforms to UL 498, Section 147
UL listed receptacle, # E491706
Water protection closed: IP43 rated
Water protection open: 1/2 gallon spill rated outlet
Gasket under bezel to keep water out
Bezel size: 3.98” round
Bezel thickness: .058"
Cutout size: 3 3/4” round
Pop up height: 5.3”
Middle stone top diameter: 3.175"
Middle stone thickness: .5"
Depth under 3cm counter: 12"
Works in counter thickness: 3/8” - 2 3/16”
Flange width needed under counter: 4.53"
5’ cord needs to be hardwired to junction box
Junction box not included
Must be connected to GFCI circuit
Install using a licensed electrician
Consult with electrician/inspector before ordering
Designed for indoor installations only
RoHS and Proposition 65 compliant
2-year warranty
Drawing (PDF)
Installation Instructions (PDF)
ETL Certification (PDF)
Color: Stainless steel metal top
Outlet: 20 Amp, 2 charging USB
USB-A: QC 3.0 rated, 27W
USB-C: PD 2.0 rated, 30W
340-degree rotation
Tamper-resistant (TR) plugs
Meets 2023 NEC code 406.5E for countertops
ETL listed for USA installations, # 4004534
cETL listed for Canada installation, # 4004534
CSA approved for Canada, #C22.2
Conforms to UL 498, Section 147
UL listed receptacle, # E491706
Water protection closed: IP43 rated
Water protection open: 1/2 gallon spill rated outlet
Gasket under bezel to keep water out
Bezel size: 3.98” round
Bezel thickness: .058"
Cutout size: 3 3/4” round
Pop up height: 5.3”
Middle stone top diameter: 3.175"
Middle stone thickness: .5"
Depth under 3cm counter: 12"
Works in counter thickness: 3/8” - 2 3/16”
Flange width needed under counter: 4.53"
5’ cord needs to be hardwired to junction box
Junction box not included
Must be connected to GFCI circuit
Install using a licensed electrician
Consult with electrician/inspector before ordering
Designed for indoor installations only
RoHS and Proposition 65 compliant
2-year warranty
Drawing (PDF)
Installation Instructions (PDF)
ETL Certification (PDF)
