Under Cabinet Light Kit Complete Solution for an Easy Installation
The under cabinet light kit from Diode LED is an easy to install complete solution designed to make installation fast and effortless. The kit includes 16' of tape light, 5 connectors, and a 60W dimmer switch. What really makes this kit shine is the revolutionary dimmer switch, it has an integrated power supply and driver built-in to the dimmer. This means that you don't have to try to find a place to hide a large power supply.
The 60 watt model can run tape light up to 44' in a straight run of tape.
The 100 watt model can run tape light up to 67' in length. To achieve 67', a 55' straight length would be used, then an additional 12' straight run can be added.
Please note these scenarios that will cause voltage drop and decrease the max length of tape:
-The distance from the driver to the start of tape
-How long the wire runs are when splicing
-The AWG thickness of the wire
The kit includes everything you need for installation, purchasing as a kit saves money versus buying individually. Below are the details on the items in the kit:
LED Tape Light:
-16.4' spool
-3,000K color temperature
-24VDC
-Dimmable
-Field-cuttable every 4 inches
-18 LED's per foot
-126 Lumens per foot
-Wattage: 1.54 Watts per foot
-CRI: 95+
-Dimensions: .32" x .1"
-cULus listed 2108
-7-year warranty
Dimmer Switch:
-Integrated driver/power supply
-On/Off switch
-Sliding dimmer, 5% to 100% adjustability
-24VDC
-60 Watts
-Standard decora size
-Installs in a single gang box
-White, brown, and light almond face plates included
-Wall plate not included
-cULus listed 2108
-5-year warranty
-Dimensions: 1.4" x 2.1" x 4.1" (D x W x H)

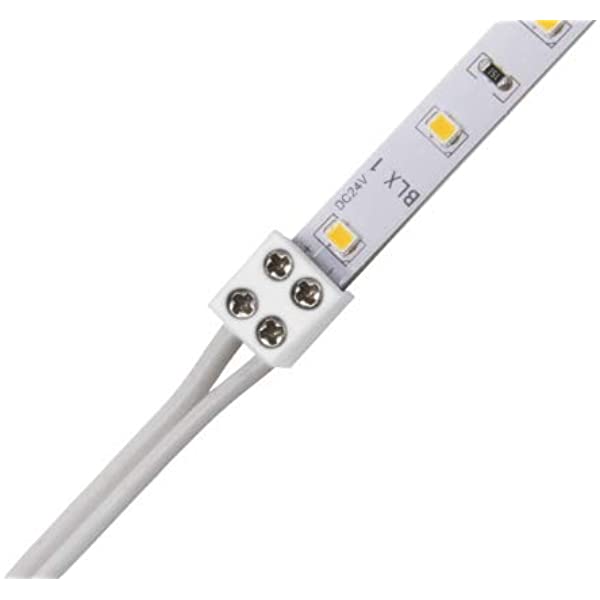

Connectors:
-(5) tape-to-wire connectors
-Screw-down connections
-Dimensions: .45" x .4" x .3" (L x W x H)
-5-year warranty
Finally a Simple Solution for Under Cabinet Lighting
Enjoy beautiful diffused LED lighting without the hassle of power supplies and drivers, now you can have a 100% guaranteed working system with no compatibility issues. Works in any indoor application including kitchens, coves, crown molding, stairs, closets, or anywhere you need accent lighting.
Specifications:
Includes tape strip, connectors, and 60W dimmer
No power supplies or drivers required
100% compatible
Dimmable from 5% to 100%
3,000K color temperature
Field-cuttable every 4 inches
Indoor use only
UL listed for USA
cETL listed for Canada
UL listing number 2108
24VDC
Install using a licensed electrician
Designed for indoor installations only
Includes white, light almond, or brown covers for switch
Capable of running up to 44' total of tape light
7-year warranty on lights
5-year warranty on connectors and dimmer
Tape Light Specification Sheet (PDF)
Dimmer Switch Specification Sheet (PDF)
Connector Specification Sheet (PDF)
Includes tape strip, connectors, and 60W dimmer
No power supplies or drivers required
100% compatible
Dimmable from 5% to 100%
3,000L color temperature
Field-cuttable every 4 inches
Indoor use only
UL listed for USA
cETL listed for Canada
UL listing number 2108
24VDC
Install using a licensed electrician
Designed for indoor installations only
Includes white, brown, or light almond covers for switch
7-year warranty on lights
5-year warranty on connectors and dimmer
Tape Light Specification Sheet (PDF)
Dimmer Switch Specification Sheet (PDF)
Connector Specification Sheet (PDF)
Tape Light Specification Sheet (PDF)
Dimmer Switch Specification Sheet (PDF)
Connector Specification Sheet (PDF)
Shipping Policy
This item qualifies for free ground shipping to anywhere in the USA and Canada. In-stock orders are shipped the same business day Monday-Friday from Boise, ID if ordered by 6pm EST.
Return Policy
If you are not completely satisfied with your purchase you may return this item for a full refund of the merchandise total, the return request must be made within 45 days from order date. Please note that you are responsible for all return shipping charges unless the item is defective or damaged. Return credits are issued within 5 business days to your original method of payment once the item is received and inspected.
Return Eligibility
Items must be in new condition and in the original packaging to qualify for a full refund (please do not modify the product in any way). If these conditions are not met, then the return could be subject to a restocking fee, or the product sent back to sender.
QUESTIONS & ANSWERS
Ask a Question-
What type of wire for the low voltage side if buying the 60watt 24volt driver dimmer switch for under cabinet lighting. Is thermostat wire acceptable or should I use an 18/2 type led power wire. Thanks
The thermostat wire works great.
-
My electrician said these are for low voltage wiring. Is he correct?
This unit gets connected to standard 120 volt AC power then the driver reduces the power down for the LED lights to work.
You can see more by clicking here:
Dimmer & Driver Specification Sheet
