Under Cabinet Light Kit, 16' LED Tape Strip, 100W Dimmer/Driver Switch

5 reviews   |   Q&A

$272.99

Free 4-Day Shipping!

Part #: DI-KIT-24V-BC1SX100-3000
Vendor: Diode LED
In Stock!
Ships same business day from Boise, ID if ordered by 6pm EST
Ship To:
Check Arrival Date and Cost
Estimated Arrival
Estimated Cost
Maximum quantity available reached.

Under Cabinet Light Kit Complete Solution for an Easy Installation

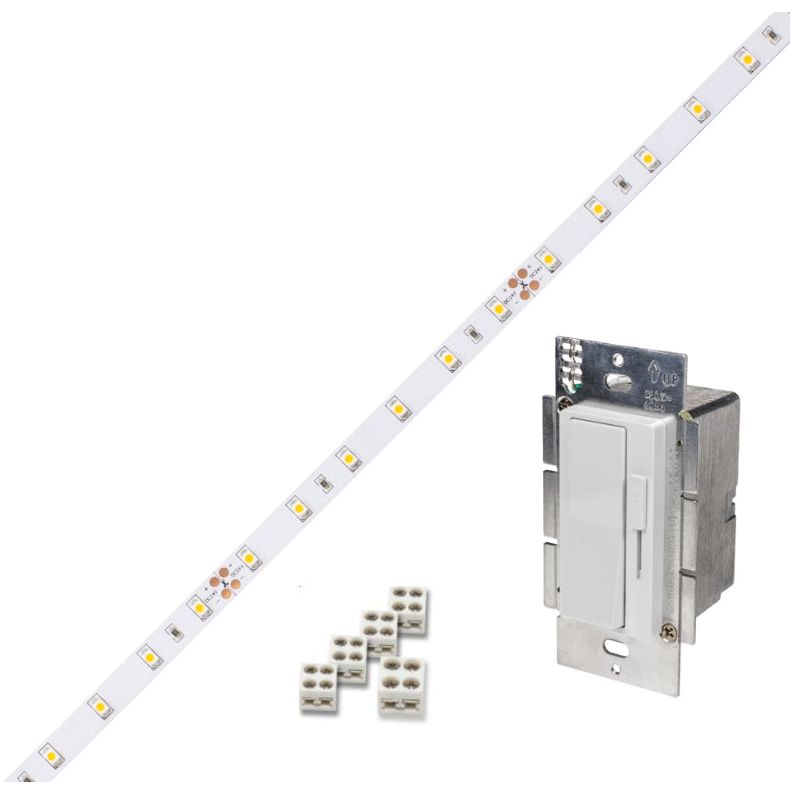

The under cabinet light kit from Diode LED is an easy to install complete solution designed to make installation fast and effortless. The kit includes 16' of tape light, 5 connectors, and a 100W dimmer switch. What really makes this kit shine is the revolutionary dimmer switch, it has an integrated power supply and driver built-in to the dimmer. This means that you don't have to try to find a place to hide a large power supply.

The 60 watt model can run tape light up to 35' in length, the 100 watt model can run tape light up to 60' in length.

The kit includes everything you need for installation, purchasing as a kit saves money versus buying individually. Below are the details on the items in the kit:

LED Tape Light:

     -16.4' spool
     -3,000K color temperature
     -24VDC
     -Dimmable
     -Field-cuttable every 4 inches
     -18 LED's per foot
     -126 Lumens per foot
     -Wattage: 1.54 Watts per foot
     -CRI: 95+
     -Dimensions: .32" x .1"
     -cULus listed 2108
     -12-year warranty

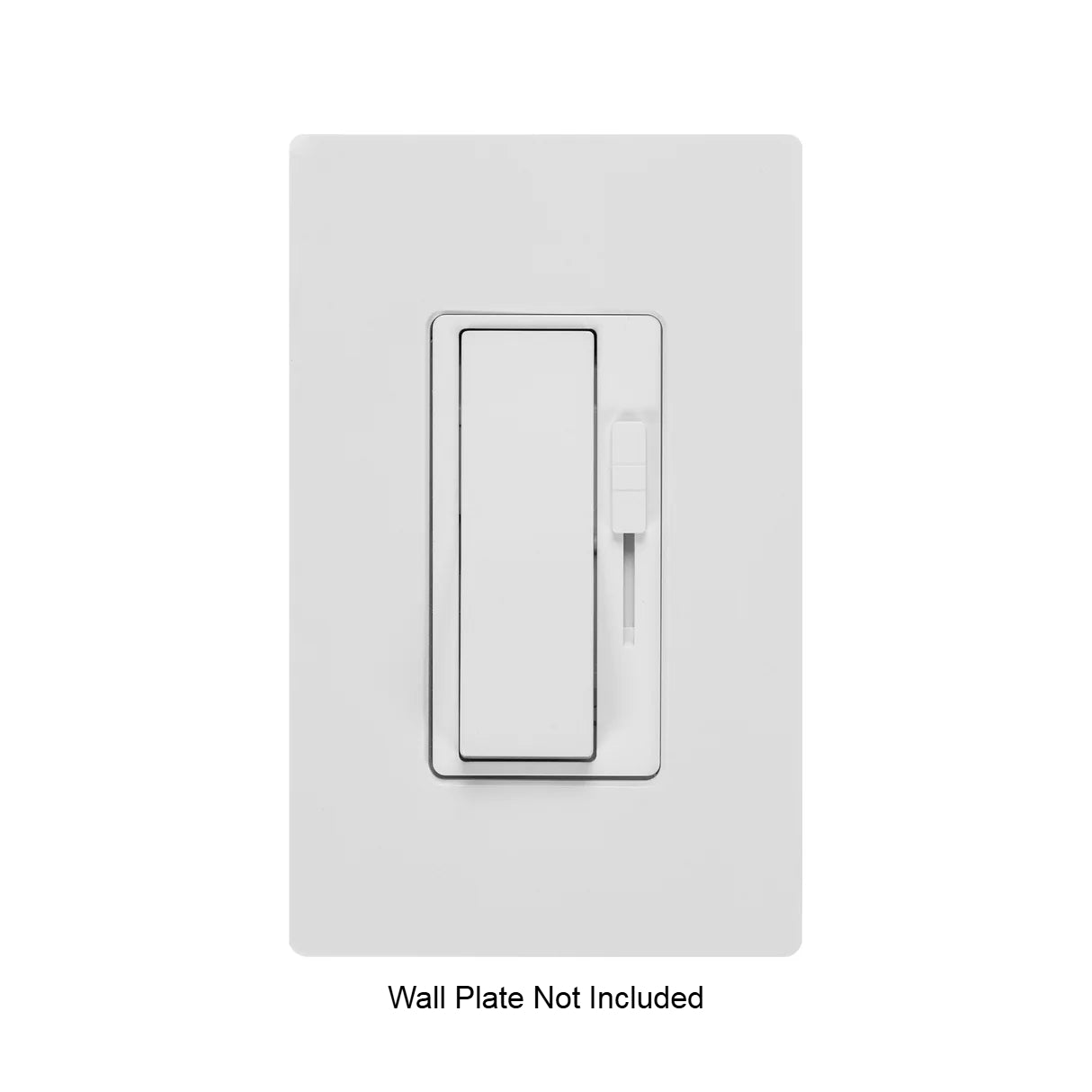

Dimmer Switch:
     -Integrated driver/power supply
     -On/Off switch
     -Sliding dimmer, 5% to 100% adjustability
     -24VDC
     -100 Watts
     -Standard decora size
     -Installs in a single gang box
     -White, brown, and light almond face plates included
     -Wall plate not included
     -cULus listed 2108
     -5-year warranty
     -Dimensions: 1.4" x 2.1" x 4.1" (D x W x H)

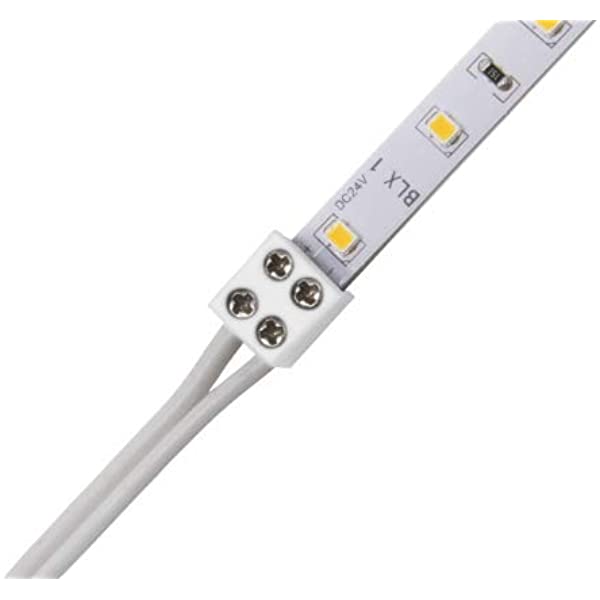

Connectors:
     -(5) tape-to-wire connectors
     -Screw-down connections
     -Dimensions: .45" x .4" x .3" (L x W x H)
     -5-year warranty

Finally a Simple Solution for Under Cabinet Lighting

Enjoy beautiful diffused LED lighting without the hassle of power supplies and drivers, now you can have a 100% guaranteed working system with no compatibility issues. Works in any indoor application including kitchens, coves, crown molding, stairs, closets, or anywhere you need accent lighting.

Specifications:

Includes tape strip, connectors, and 100W dimmer
No power supplies or drivers required
100% compatible
Dimmable from 5% to 100%
3,000K color temperature
Field-cuttable every 4 inches
Indoor use only
UL listed for USA
cETL listed for Canada
UL listing number 2108
24VDC
Install using a licensed electrician
Designed for indoor installations only
Includes white, light almond, or brown covers for switch
Capable of running up to 60' total of tape light
12-year warranty on lights
5-year warranty on connectors and dimmer
Tape Light Specification Sheet (PDF)
Dimmer Switch Specification Sheet (PDF)
Connector Specification Sheet (PDF)


Includes tape strip, connectors, and 100W dimmer
No power supplies or drivers required
100% compatible
Dimmable from 5% to 100%
3,000L color temperature
Field-cuttable every 4 inches
Indoor use only
UL listed for USA
cETL listed for Canada
UL listing number 2108
24VDC
Install using a licensed electrician
Designed for indoor installations only
Includes white, brown, or light almond covers for switch
12-year warranty on lights
5-year warranty on connectors and dimmer
Tape Light Specification Sheet (PDF)
Dimmer Switch Specification Sheet (PDF)
Connector Specification Sheet (PDF)

Shipping Policy
This item qualifies for free ground shipping to anywhere in the USA and Canada. In-stock orders are shipped the same business day Monday-Friday from Boise, ID if ordered by 6pm EST.
Return Policy
If you are not completely satisfied with your purchase you may return this item for a full refund of the merchandise total, the return request must be made within 45 days from order date. Please note that you are responsible for all return shipping charges unless the item is defective or damaged. Return credits are issued within 5 business days to your original method of payment once the item is received and inspected.
Return Eligibility
Items must be in new condition and in the original packaging to qualify for a full refund (please do not modify the product in any way). If these conditions are not met, then the return could be subject to a restocking fee, or the product sent back to sender.
