Under Cabinet Slim Dual Light Switch Box, White

114 reviews   |   Q&A

$46.79

Free 4-Day Shipping!

Part #: RU170WDLS
Vendor: Hubbell
In Stock!
Ships same business day from Boise, ID if ordered by 6pm EST
Ship To:
Check Arrival Date and Cost
Estimated Arrival
Estimated Cost
Maximum quantity available reached.

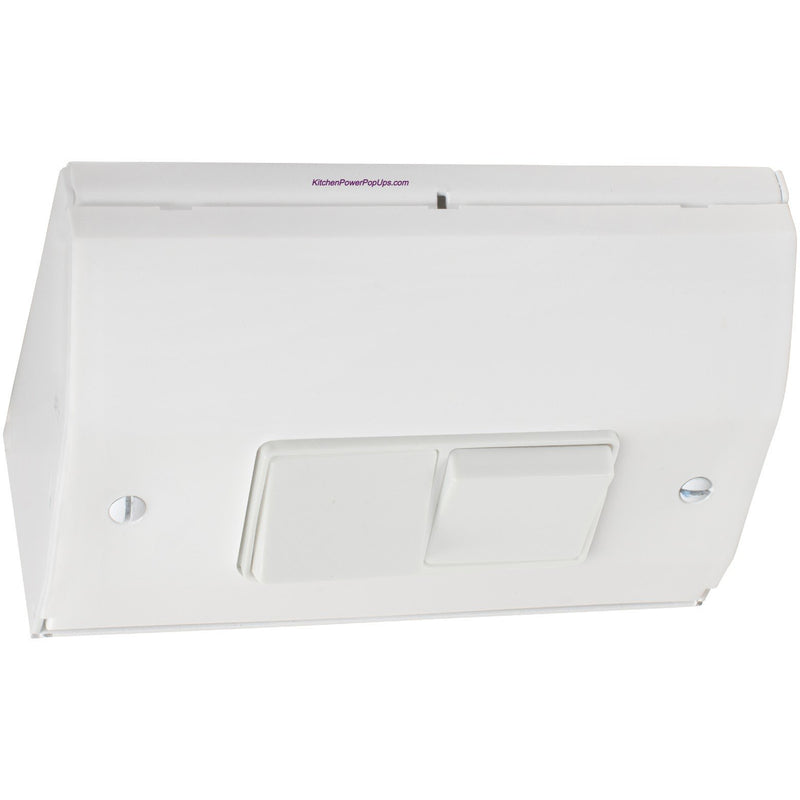

The Hubbell RU170WDLS is a hardwired power box system that mounts underneath your cabinet with dual 15 amp white rocker switches. The box is white, and the outlet is white. Now you can hide your switches under the cabinet to create the cleanest look possible. Use the switches to control current to devices such as lights, fixtures, or even a garbage disposal.

Easy to Use Slim Profile Angled Switch Strip

The box installs at an angle under your cabinet making it simple to switch on and off lights under the cabinet. The box can be installed horizontally under the cabinet so it is not seen, or vertically for even easier access to the outlets. The box is 5.6" long, 3.39" deep, and only 1.63" thick. This is the the slim version box, and slim switch, making it the thinnest profile product to mount a switch under a cabinet. The box takes up zero space inside the cabinet.

Use to Control Multiple Devices From One Box

The switches are rated for 15 Amps, each switch is a single pole switch capable of turning on or off one device per switch. The switch is quiet rated so it will not make a distracting noise when being switched. The white outlet blends in well to the box for a clean look under the cabinet. The outlet is a standard decora outlet, so if needed, the outlet can easily be replaced should your requirements change in the future.

Quick Installation

Feed your wire through one of the 6 knockouts in the box.  There are 2 on the back, 2 on the bottom, and 1 on each side. Wire up the switch, and install the switch in the box. Use the included template to drill the holes through the cabinet, and then use the included screws to mount the switch box to the underside of the cabinet. Alternatively the box can be wall mounted if desired.

NEC and UL Approved for Kitchens

The box is UL E31999 listed for USA installations, and cUL and CSA approved for Canada installations. The switch is also cUL and CSA approved so it will comply with NEC kitchen code.

Under cabinet switches are a reliable and affordable solution to eliminate switches in your wall, and create a super clean and modern look in your kitchen. The under cabinet switch system includes the box and switch.

Specifications:

Color:  White
White dual switches: 15A
Each switch is a single pull
UL listed switch
UL listed box, # E31999
UL listed for USA, cUL listed for Canada
CSA Approved for Canada
Meets 2017 NEC code for kitchens

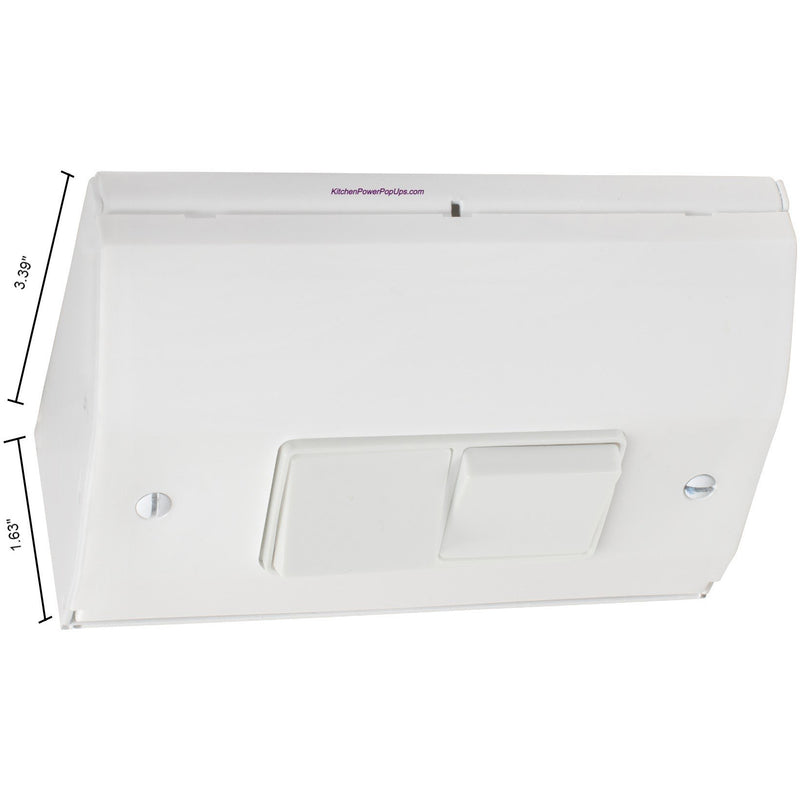

Dimensions: 5.6" long, 3.39" wide, and 1.63" thick
Six 3/4" knockouts
Install using a licensed electrician
Consult with electrician/inspector before ordering
Designed for indoor installations only
Includes all necessary mounting hardware
2 year warranty

Color:  White
White dual switches: 15A
Each switch is a single pull
UL listed switch
UL listed box, # E31999
UL listed for USA, cUL listed for Canada
CSA Approved for Canada
Meets 2017 NEC code for kitchens
Dimensions: 5.6" long, 3.39" wide, and 1.63" thick
Six 3/4" knockouts
Install using a licensed electrician
Consult with electrician/inspector before ordering
Designed for indoor installations only
Includes all necessary mounting hardware
2 year warranty

Shipping Policy
This item qualifies for free ground shipping to anywhere in the USA and Canada. In-stock orders are shipped the same business day Monday-Friday from Boise, ID if ordered by 6pm EST.
Return Policy
If you are not completely satisfied with your purchase you may return this item for a full refund of the merchandise total, the return request must be made within 45 days from order date. Please note that you are responsible for all return shipping charges unless the item is defective or damaged. Return credits are issued within 5 business days to your original method of payment once the item is received and inspected.
Return Eligibility
Items must be in new condition and in the original packaging to qualify for a full refund (please do not modify the product in any way). If these conditions are not met, then the return could be subject to a restocking fee, or the product sent back to sender.









QUESTIONS & ANSWERS

Ask a Question
  • Can this be used for a garbage disposal?

    Yes, one of the switches could be uses for a garbage disposal.
