18/2 PVC Solid Thermostat CL2 Wire, Brown, 10'

  |   Q&A

$6.99

Free 4-Day Shipping!

Part #: THERM18-2C-10
In Stock!
Ships same business day from Boise, ID if ordered by 6pm EST
Ship To:
Check Arrival Date and Cost
Estimated Arrival
Estimated Cost
Maximum quantity available reached.

Easy Solution to Wire to Your Connectors

This wire is designed for thermostats, but also for air conditioning, heat pumps, bell and alarm systems, signal systems, door bells, and remote control units where the voltage does not exceed 150 volts.

However, they also can be used to connect to the wire terminal connectors for under cabinet lighting.

This wire is UL 13 and CL 2 rated for NEC 725.  It is solid soft drawn copper per ASTM B-3. It features heat and moisture-resistant brown color PVC insulation. It has a temperature rating of -4F to 140F.

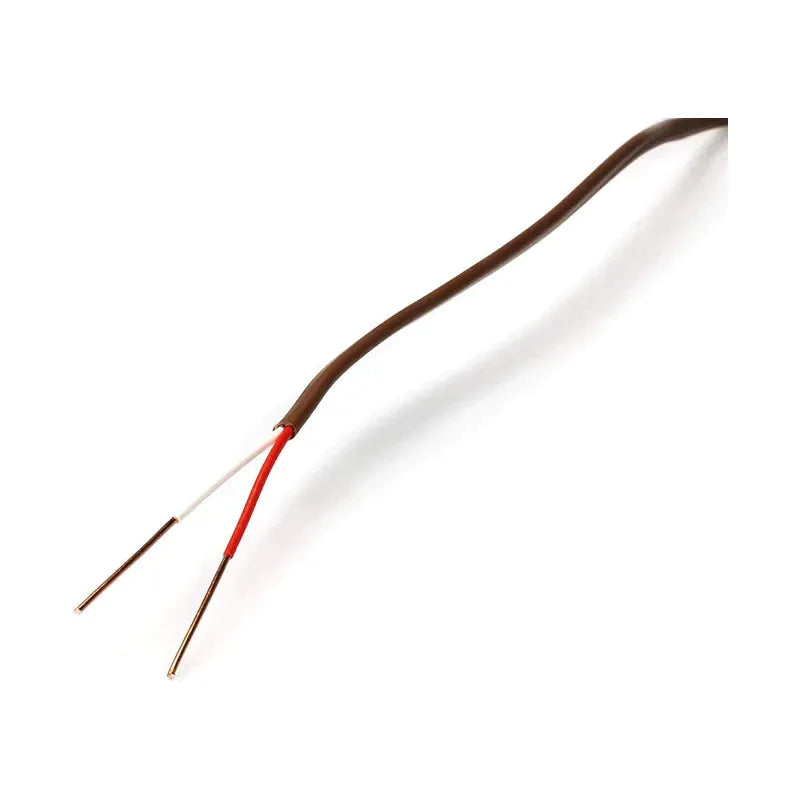

The wire is 18 AWG with 2 conductors in parallel construction. The overall diameter is .136", the insulation is .006", and the jacket thickness is .015"

This is for a length of 10'.

Specifications:

Length: 10'
Color: Brown
18 AWG
2 conductor
UL 13
CL2
Install using a licensed electrician
1-year warranty
Specification Sheet (PDF)

Length: 10'
Color: Brown
18 AWG
2 conductor
UL 13
CL2
Install using a licensed electrician
1-year warranty
Specification Sheet (PDF)
