Dimmer Switch with Integrated Driver for LED Tape Light, 100W, 24VDC

  |   Q&A

$209.99

Free 4-Day Shipping!

Part #: DI-24V-SE-100W
Vendor: Diode LED
Only 4 left in stock - more on the way.
Ships same business day from Boise, ID if ordered by 6pm EST
Ship To:
Check Arrival Date and Cost
Estimated Arrival
Estimated Cost
Maximum quantity available reached.

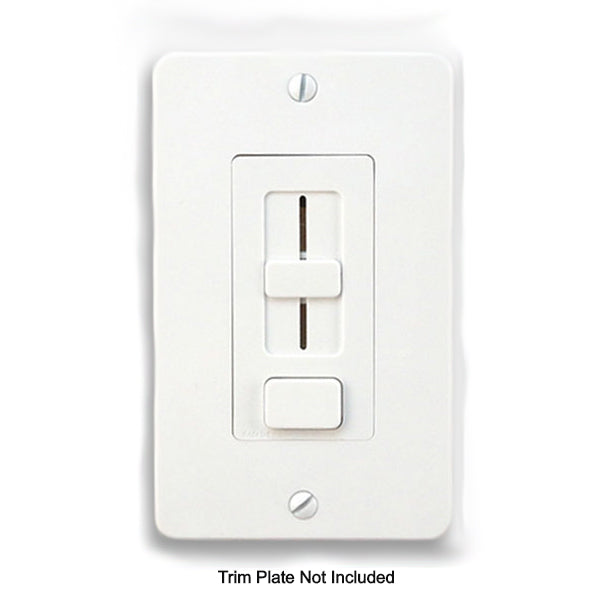

The Switchex from Diode LED is an All-in-One Dimmer Switch with Integrated Driver

The Switchex is a dimmer switch designed to make installation fast and effortless, the switch has an integrated power supply and 100W driver built-in to the dimmer. This means that you don't have to try to find a place to hide a large power supply.  The dimmer provides 5% to 100% dimming capabilities, and the on/off button always remembers the last used setting.

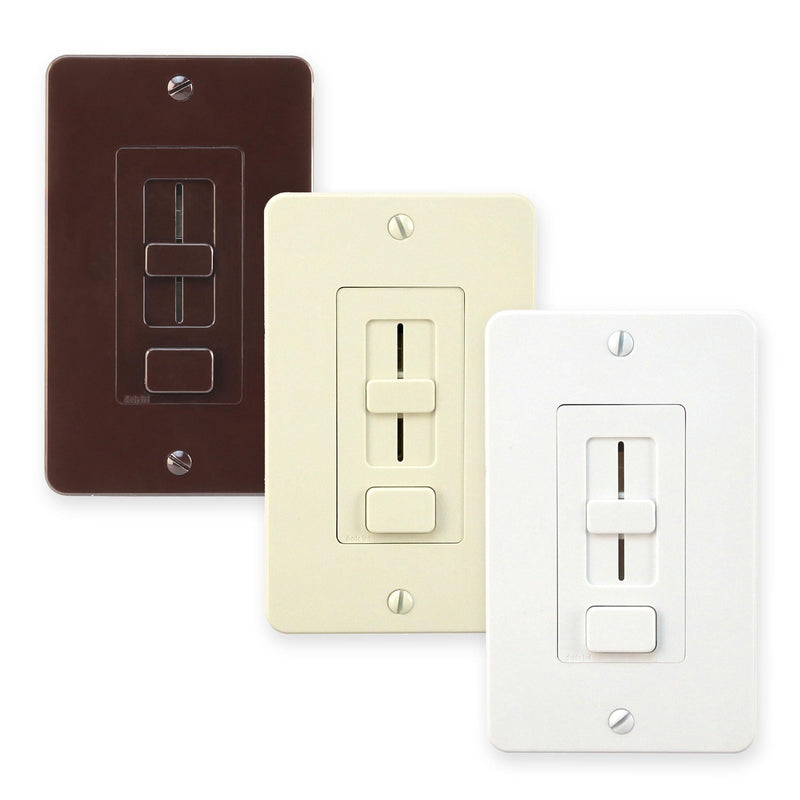

The switch installs easily into a single gang box, it includes a voltage barrier partition to install high and low voltage in the same box. The standard decora size comes with 3 different color face plates. White, light almond, and brown. *Trim plate not included*

Use with most Diode LED brand tape light, however it is compatible with most solid color 24VDC tape light and fixtures.

The 60 watt model can run tape light up to 35' in length, the 100 watt model can run tape light up to 60' in length.

Specifications:

Integrated driver/power supply
On/Off switch
Sliding dimmer, 5% to 100% adjustability
24VDC
100 Watts
No minimum load requirements
Standard decora size
Installs in a single gang box
White, brown, and light almond face plates included
Capable of running up to 60' of total tape light
Wall plate not included
cULus listed USA and Canada #E469769
Conforms to NEC Code 725.136
Indoor use only
5-year warranty
Dimensions: 1.4" x 2.1" x 4.1" (D x W x H)
Switchex Specification Sheet (PDF)
Switchex Installation Guide (PDF)
Switchex Brochure (PDF)


Integrated driver/power supply
On/Off switch
Sliding dimmer, 5% to 100% adjustability
24VDC
100 Watts
No minimum load requirements
Standard decora size
Installs in a single gang box
White, brown, and light almond face plates included
Capable of running up to 60' of total tape light
Wall plate not included
cULus listed USA and Canada #E469769
Conforms to NEC Code 725.136
Indoor use only
5-year warranty
Dimensions: 1.4" x 2.1" x 4.1" (D x W x H)
Switchex Specification Sheet (PDF)
Switchex Installation Guide (PDF)
Switchex Brochure (PDF)
