Countertop Push Button Disposal Dual Outlet Air Switch Kit, White

19 reviews   |   Q&A

$58.69

Free 4-Day Shipping!

Part #: TF-1D-WT
In Stock!
Ships same business day from Boise, ID if ordered by 6pm EST
Ship To:
Check Arrival Date and Cost
Estimated Arrival
Estimated Cost
Maximum quantity available reached.

Countertop Air Button Disposal Switch Kit in White

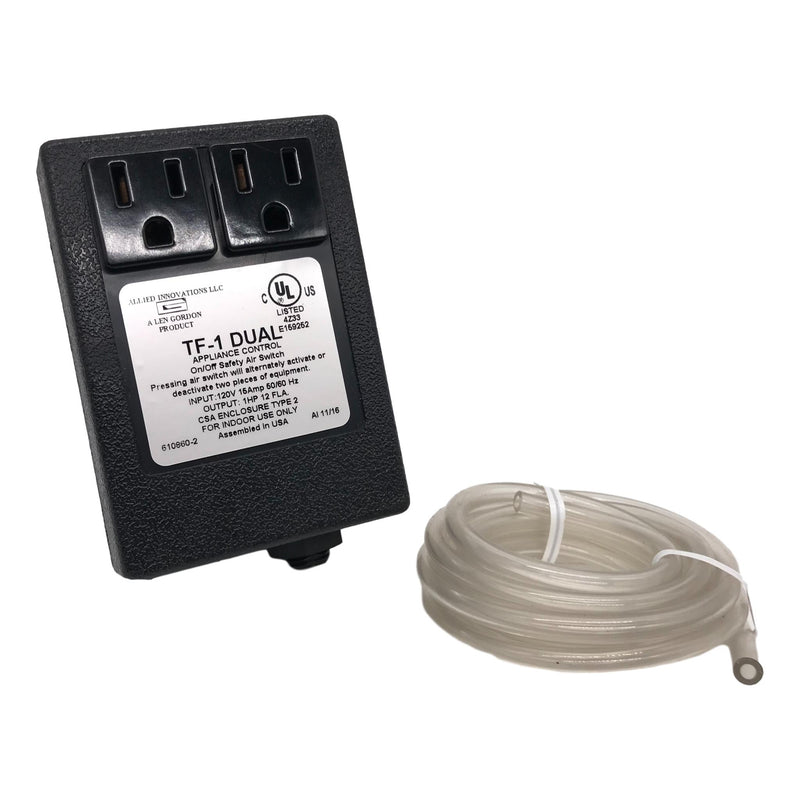

The Len Gordon series by Allied Innovations air switch kits consist of the button, trim ring, power controller, and 10 feet of air tubing. The round button is 1.75" in diameter and is white plastic, it is beautiful and durable. The push button activates the garbage disposal by sending air to the power controller. This meets code and is the only safe way to have a switch installed in a countertop. Simply press the button to turn your disposal on, then press again to turn off.

Easy Installation

To install drill a 1 3/8" hole where you want the button to be, drop the button into the hole and thread the lock nut up to the underside of the countertop securing it in place. The power controller simply needs to be plugged into a UL approved three-prong outlet. Then connect the included air tubing from the button to the power controller. Now you can plug your garbage disposal in the power controller and you are done, the controller can accept any disposal rated up to 1 horsepower.

If needed there is a second outlet on the power controller that allows for a hot water dispenser, dishwasher, or any other device to be plugged in. The second outlet is always on and working, however when the air button is pushed, it will turn off that plug ensuring that both aren't on at the same time overloading the circuit.

Beautiful and Safe Air Activated Switch

If you are looking for an attractive, reliable, and safe air switch for your garbage disposal then look no further. The switch can also be used to control a Jacuzzi, or massage chair. The air button is UL listed for the USA and is cUL listed for Canada. The product can also proudly state that it is Made in the USA!

Specifications:

Color:  White
1.75" top diameter
1 3/8" cutout hole size
Screw nut width needed under counter: 1.69"
Includes button, controller, 10' air tubing
Made in the USA
Easy installation
UL listed for USA
cUL listed for Canada
Provides on/off function for up to 1HP disposal
Install using a licensed electrician
1 year warranty
Installation Instructions (PDF)

Color:  White
1.75" top diameter
1 3/8" cutout hole size
Screw nut width needed under counter: 1.69"
Includes button, controller, 10' air tubing
Made in the USA
Easy installation
UL listed for USA
cUL listed for Canada
Provides on/off function for up to 1HP disposal
Install using a licensed electrician
1 year warranty
Installation Instructions (PDF)
