Under Cabinet Angled Power Strip AFCI and GFCI Combo Outlet, Stainless

115 reviews   |   Q&A

$85.49

Free 4-Day Shipping!

Part #: RU200SS20AGFIAFI
Vendor: Hubbell
In Stock!
Ships same business day from Boise, ID if ordered by 6pm EST
Ship To:
Check Arrival Date and Cost
Estimated Arrival
Estimated Cost
Maximum quantity available reached.

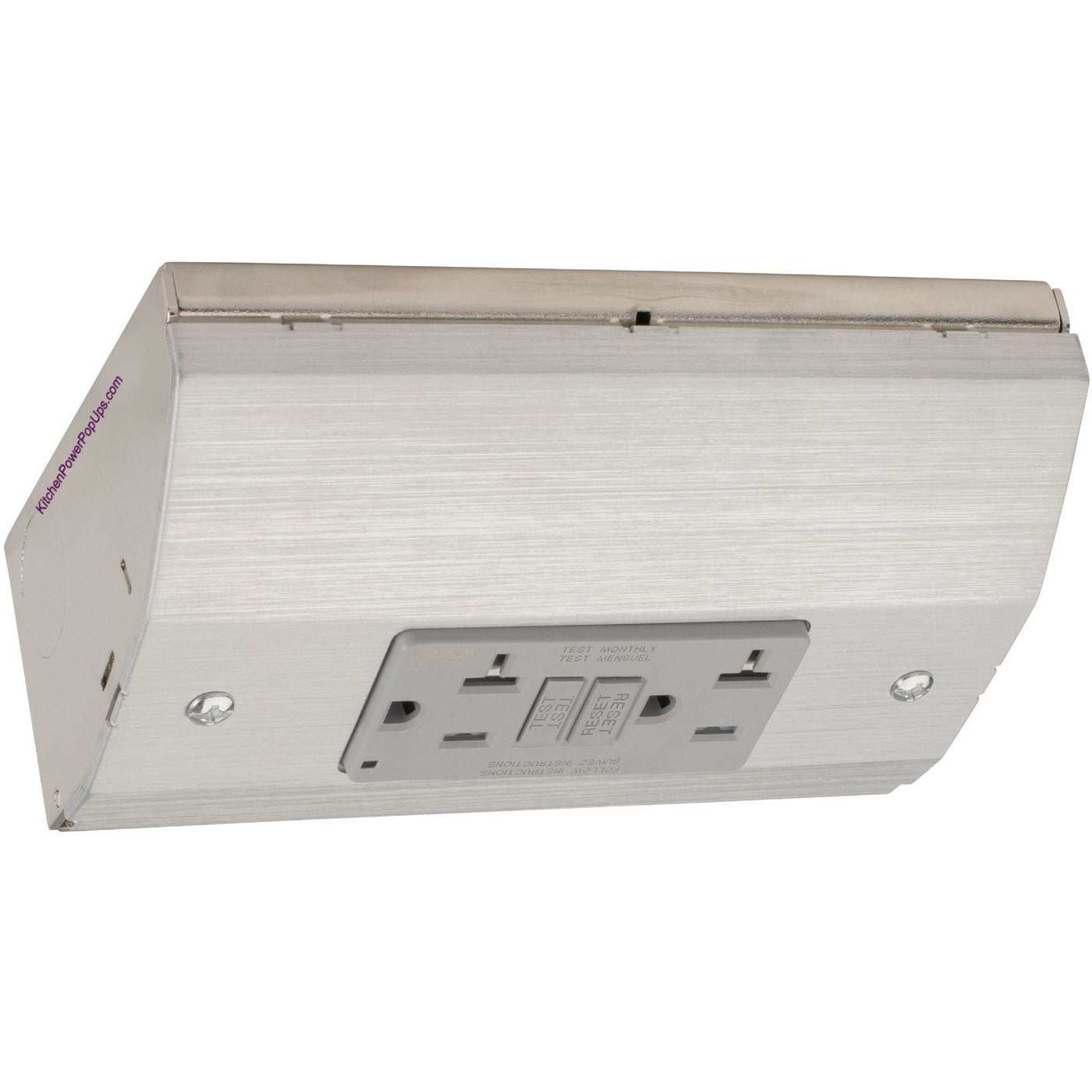

The Hubbell RU200SS20AGFIAFI is a hardwired power box system that mounts underneath your cabinet and supplies two 20 amp power outlets with integrated GFCI and AFCI protection. The box is stainless steel, and the outlet is a gray color. Keep your beautiful backsplash outlet free with under cabinet power, no more ugly white outlets in your backsplash.

Easy to Use Slim Profile Angled Power Strip

The box installs at an angle under your cabinet making it simple to plug in appliances into the outlet. The box can be installed horizontally under the cabinet so it is not seen, or vertically for even easier access to the outlets. The box is 5.6" long, 3.39" deep, and only 2.03" thick. This box is low profile and includes a GFCI and AFCI outlet, making it easy to install while looking great under a cabinet. The box takes up zero space inside the cabinet.

20A GFCI and AFCI Tamper Resistant Outlet

The outlet is 20 amp rated to accept the most demanding appliances being plugged into it, as well as tamper resistant (TR) plugs. The outlet has integrated GFCI and AFCI protection providing safety right at the source. If the GFCI protection in the outlet recognizes an unsafe interruption in the current, it will automatically shut off power to the outlet so you don't get shocked.  If the AFCI recognize an Arc Fault it will automatically shut off power to the outlet protecting against a potential fire. The gray outlet compliments the stainless steel box for a clean look under the cabinet. The outlet is a standard decora outlet, so if needed, the outlet can easily be replaced should your power requirements change. The 20A outlet is backwards compatible with 15A plugs, meaning that both 15A plugs and 20A plugs can be plugged into the outlet. The outlet is rated for residential and commercial applications.

Quick Installation

Feed your wire through one of the 6 knockouts in the box.  There are 2 on the back, 2 on the bottom, and 1 on each side. Wire up the receptacle, and install the receptacle in the box. Use the included template to drill the holes through the cabinet, and then use the included screws to mount the power box to the underside of the cabinet. Alternatively the box can be wall mounted if desired.

The outlet features a Load terminal so you can line out your wire and GFCI and AFCI  protect other outlets down the line.

NEC and UL Approved for Kitchens

The box is UL E31999 listed for USA installations, and cUL and CSA approved for Canada installations. The boxes must be installed between 15 inches and 20 inches above the countertop surface to comply with NEC kitchen receptacle code.

Under cabinet power strips are a reliable and affordable solution to have no outlets in your backsplash, and create a super clean and modern look in your kitchen. The under cabinet power system includes the box and receptacle.

How Many do I Need?

The code for outlets under the cabinet are the same requirements as if they were installing in the backsplash.  This is typically every 2 feet, however we highly recommend to consult with your electrician to verify your specific requirements.

Specifications:

Color:  Stainless box and gray outlet
Outlet: 20A GFCI and AFCI with Load out terminal
Tamper resistant (TR) plugs
UL listed outlet, # UL498, UL 943 File E48380
UL listed box, # E31999
UL listed for USA, cUL listed for Canada
CSA Approved for Canada
Meets 2017 NEC code for kitchen receptacles
Dimensions: 5.6" long, 3.39" wide, and 2.03" thick
Six 3/4" knockouts
Install between 15 to 20 inches above the countertop
Install using a licensed electrician
Consult with electrician/inspector before ordering
Designed for indoor installations only
Includes all necessary mounting hardware
2 year warranty

Color:  Stainless box and gray outlet
Outlet: 20A GFCI and AFCI with Load out terminal
Tamper resistant (TR) plugs
UL listed outlet, # UL 498, UL 943 E48380
UL listed box, # E31999
UL listed for USA, cUL listed for Canada
CSA Approved for Canada
Meets 2017 NEC code for kitchen receptacles
Dimensions: 5.6" long, 3.39" wide, and 2.03" thick
Six 3/4" knockouts
Install between 15 to 20 inches above the countertop
Install using a licensed electrician
Consult with electrician/inspector before ordering
Designed for indoor installations only
Includes all necessary mounting hardware
2 year warranty
