Concealed Plug Recessed Floor Box, 1 Outlet, Hidden Plugs, Aluminum

  |   Q&A

$133.62

Free 4-Day Shipping!

Part #: RCFB-1-A
Vendor: Lew Electric
In Stock!
Ships same business day from Boise, ID if ordered by 6pm EST
Maximum quantity available reached.

The Lew Electric RFB-1-A is a recessed floor box kit that includes everything you need to install power into your floor. Hide unsightly outlets and plugs down inside the box, with only the cord coming out above the floor. This creates a low-profile look without the plugs sticking up from the ground.

Eliminate Tripping Hazards with a Concealed Plug Floor Box

Now you can safely eliminate dangerous plugs from being above ground with no tripping hazards. With this floor box, plugs cannot be kicked by feet, and you don't have to worry about breaking the cord plug or outlet. Plugs are set deep down inside the box, so there is no more cluttered mess in sight. The low-profile cover is perfect for hiding under a rug, since the plugs won't be exposed and in the way. The box includes rubber grommets to protect the cords around the hole when in use, or use the screw plugs for cover and access to power when needed.

Compact Size and Easy Installation

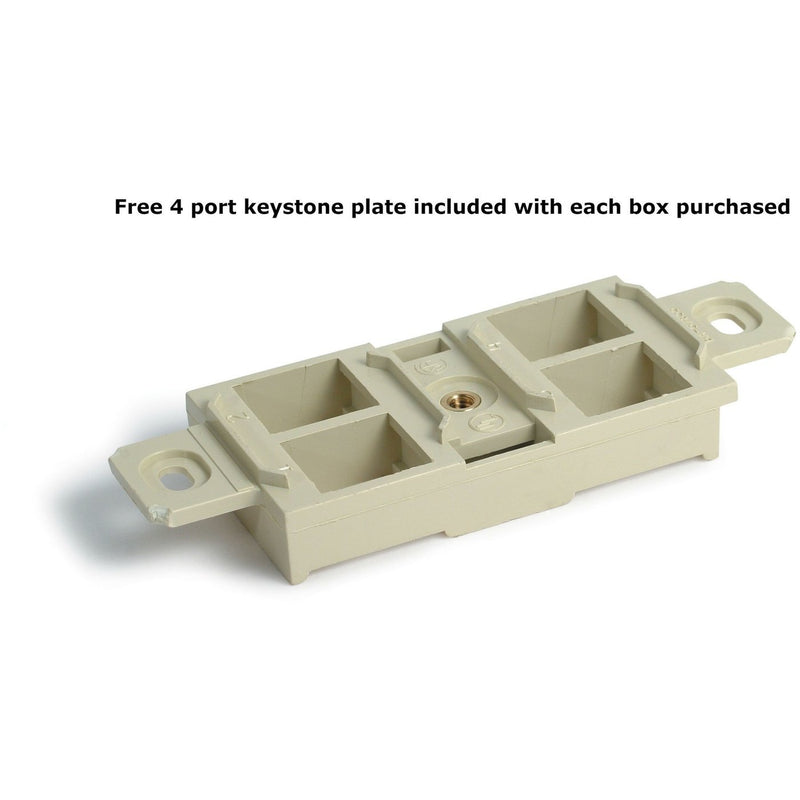

The box cover measures only 5” x 5” in size, and the real metal aluminum cover plate is only 1/8” thick. The box can be installed directly to the sub-floor or routed into a finished floor. An empty 4 port keystone is included, giving you the option to replace the outlet and add your own keystone jacks for data, communication, or video.

UL Listed and Watertight Box with Two 15A Tamper Resistant Plugs

Plug one or two cord ends into the single duplex outlet. The receptacle is rated at 15 Amps and has tamper-proof plugs. The box features a watertight assembly and both box and receptacle are UL listed.

This complete floor box kit includes everything you need; the back box, aluminum cover, receptacle, grommets, gaskets, and plate screws. The box also includes an empty 4-port keystone plate for additional options.

This floor box is a simple and economical solution to provide power below the surface of your floor with an attractive thin plate, and no unsightly plugs showing.

Specifications:

Metal plate: 1/8" thick aluminum
Outlet: 1 duplex 15A tamper proof
2 screw plugs for access, 1.25"
Connect low in the box to hide your plugs
Watertight assembly
Attach to floor or route into finished floor
Box UL # E345966
Outlet UL # E333616
Meets NEMA WD1-1983 requirement
Several knockouts for conduit
Includes plate screws
Cover size:  5" x 5"
Back box size:  4"L x 3"W x 3.5"H
Cutout size: Can't exceed 4 1/8" x 3 1/2"
Size:  1 gang
Warranty:  1 year
Lew Electric RCFB-1-A Drawing (PDF)
Lew Electric RCFB-1-A Installation Instructions (PDF)



Metal plate: 1/8" thick aluminum
Outlet: 1 duplex 15A tamper proof
2 screw plugs for access, 1.25"
Connect low in the box to hide your plugs
Watertight assembly
Attach to floor or route into finished floor
Box UL # E345966
Outlet UL # E333616
Meets NEMA WD1-1983 requirement
Several knockouts for conduit
Includes plate screws
Cover size:  5" x 5"
Back box size:  4"L x 3"W x 3.5"H
Cutout size: Can't exceed 4 1/8" x 3 1/2"
Size:  1 gang
Warranty:  1 year
Lew Electric RCFB-1-A Drawing (PDF)
Lew Electric RCFB-1-A Installation Instructions (PDF)
