Kitchen Countertop Pop Up 15A Charging USB Outlet, Dark Bronze

1   |   Q&A

$164.99

Free Shipping!

Part #: PUFP-CT-DB-2USB
Vendor: Lew Electric
In stock! Ships same business day from Chicago if ordered by 1:30EST
Maximum quantity available reached.

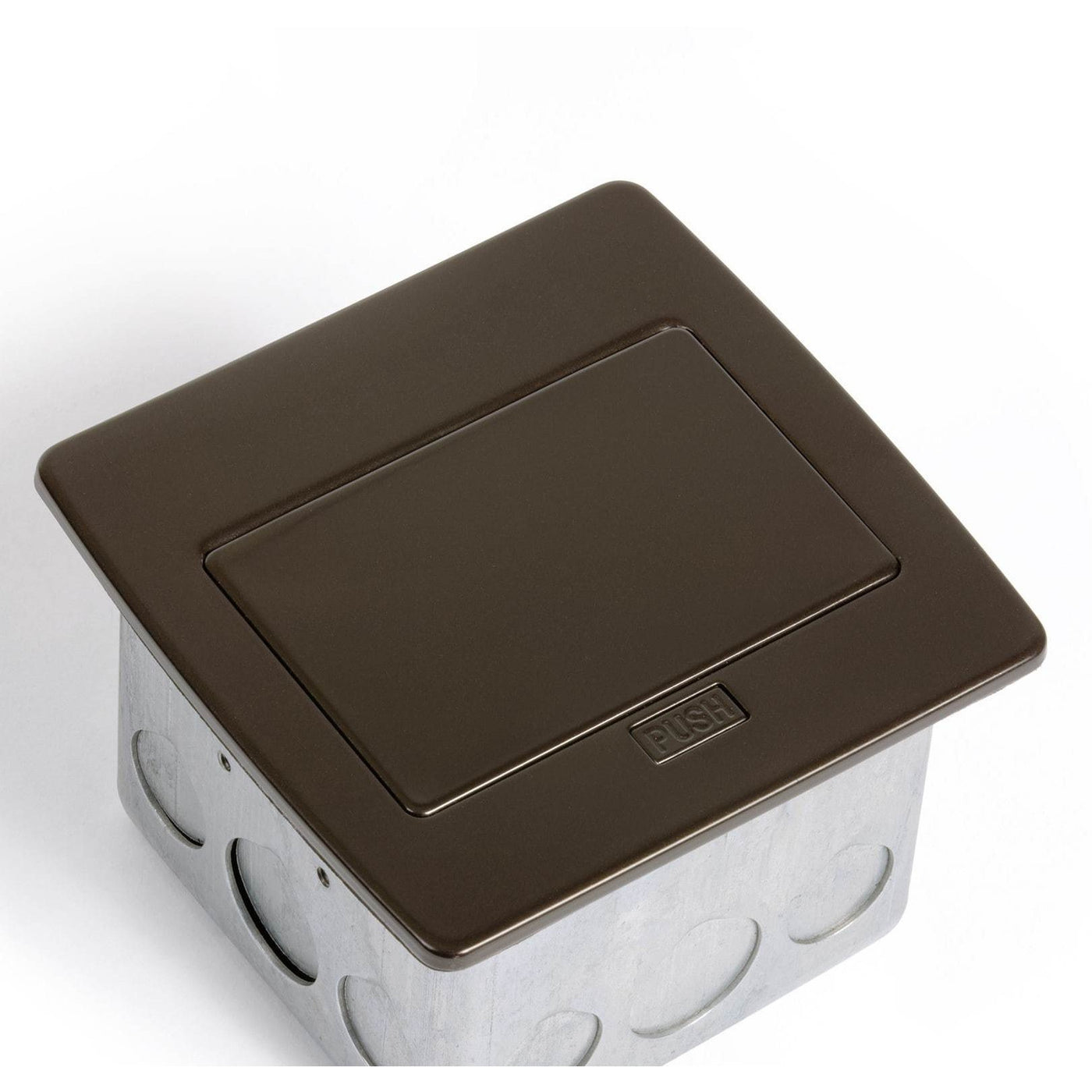

The Lew Electric PUFP-CT-DB-2USB is a power outlet and USB charging pop up box designed to be hidden in your kitchen countertop, or any location that might encounter water. When in the closed position the top sits just above the counter, creating a sleek and attractive look in your kitchen. When you need access to power and charging, simply press the button and the outlet flips up so you can plug in. The durable metal top is a beautiful dark bronze color. This color is perfect for matching dark brown and black tones in your stone, as well as oil rubbed bronze fixtures.

Meets NEC Electrical Code 406.5E for Installation in Countertops

The pop up was specifically designed to meet code for kitchen and wet location installations, it meets National Electrical Code (NEC) 406.5E for countertop use in the USA and Canada. The outlet is tamper proof and is UL listed, the pop up as a complete unit is ETL listed for USA installations, and cETL and CSA approved for Canada installations. The pop up features an IP44 water rating, and is splash rated for wet location installations, there is also a gasket under the bezel to keep water from entering from the sides between the countertop and the base of the pop up.

Easy to Install Hardwired Application with a Shallow Depth

The pop up only needs 2.25” of space under a 3cm countertop, and requires a 4 1/16” x 4 1/16” hole to be cut to install. Included is a metal back box that attaches to the underside of your countertop with glue for stone, or screws for wood. The outlet does not have a power cord, simply hardwire your power into the outlet by first running it through the knockouts in the rear of the back box. The outlet needs to be wired to a GFCI circuit (typically done at the panel with a GFCI breaker), or tapped off of a GFCI outlet. Then if the outlet recognizes an unsafe interruption in the current, it will automatically shut off power to the outlet.

Tamper Proof Power and USB Charging Outlet

There are two 15 Amp plugs and two USB charging ports. The USB ports are rated for 3.6 Amps of shared power. There is a smart chip inside the outlet making the USB intelligent charging ports. They will automatically adapt to the device being plugged in, and send the maximum amount of power that the device can handle, ensuring that your device won't be over-charged. The plugs are tamper resistant (TR) so you meet code, and give you the peace of mind knowing that little lids can't put any small objects in the outlet and electrocute themselves. The outlet has passed UL's 12oz spill test rating.

Eliminate Dangerous Cords Hanging Over Your Island

A pop up outlet centrally located in your counter adds convenience to provide power and charging where you need it most. You no longer have to plug into the side of your island, and run the cord over the counter and hope it reaches to the middle of your island. Not having draping cords hanging over the side of the counter removes a huge risk factor.  It can be easy for children to catch the cord with their arm, creating a tripping hazard, or cause whatever appliance is on the counter to fall on them. Pop up outlets provide a functional, yet beautiful look in your countertop.

Convenient Power and Charging Where You Need It

The Lew Electric PUFP-CT-DB-2USB meets code for kitchen countertop installations, but can also be used in any other potentially wet location that requires recessed power such as pantries, airports, restaurants, bars, and hotels. Use the pop up to power small appliances such as coffee makers, blenders, toaster ovens, and warming trays. It can also be used for charging mobile devices such as tablets and phones via the two USB charging ports. The pop up can be installed in granite, quartz, wood, laminate, concrete, or any surface up to 2" thick that you can cut the required 4 1/16” x 4 1/16” hole.

Specifications:

Color: Dark bronze metal top
Outlet:  15 Amp, 2 charging USB
USB:  (2) Smart charging 3.6 Amp
Tamper resistant (TR) plugs
Meets 2014 NEC code 406.5E for countertops
ETL listed for USA installations, # 4004534
cETL listed for Canada installation, # 4004534
CSA approved for Canada, #C22.2
Conforms to UL 514A and 498
UL listed receptacle, # E60120
Water protection:  IP44 splash rated
Gasket under bezel to keep water out
Bezel size:  4 7/8” x 4 11/16”
Cutout size:  4 1/16” x 4 1/16”
Depth under 3cm counter:  2.25”
Back box dimensions:  3 15/16” x 4”
Works in counter thickness 1/2” to 2”
Hardwired power, no corded plug
Includes back box
Installation using a licensed electrician
Consult with electrician/inspector before ordering
Designed for indoor installations only
RoHS and Proposition 65 compliant
1 year warranty
Drawing (PDF)
Operating Instructions (PDF)

Installation Instructions (PDF)


Color:  Dark bronze metal top
Outlet:  15 Amp, 2 charging USB
USB:  (2) Smart charging 3.6 Amp
Tamper resistant (TR) plugs
Meets 2014 NEC code 406.5E for countertops
ETL listed for USA installations, # 4004534
cETL listed for Canada installation, # 4004534
CSA approved for Canada, #C22.2
Conforms to UL 514A and 498
UL listed receptacle, # E60120
Water protection:  IP44 splash rated
Gasket under bezel to keep water out
Bezel size:  4 7/8” x 4 11/16”
Cutout size:  4 1/16” x 4 1/16”
Depth under 3cm counter:  2.25”
Back box dimensions:  3 15/16” x 4”
Works in counter thickness 1/2” to 2”
Hardwired power, no corded plug
Includes back box
Installation using a licensed electrician
Consult with electrician/inspector before ordering
Designed for indoor installations only
RoHS and Proposition 65 compliant
1 year warranty

Shipping Policy
This item qualifies for free ground shipping to the Contiguous USA "lower 48" via UPS ground. Orders are shipped from Chicago, IL and ship the same business day if ordered by 1:30pm EST.
Return Policy
If you are not completely satisfied with your purchase you may return this item for a full refund of the merchandise total, the return request must be made within within 30 days of delivery date. Please note that you are responsible for all return shipping charges unless the item is defective or damaged. Return credits are issued within 10 business days to your original method of payment once the item is received and inspected.
Return Eligibility
Items must be in new condition and in the original packaging to qualify for a full refund (please do not modify the product in any way). If these conditions are not met, then the return could be subject to a restocking fee, or the product sent back to sender.

Questions & Answers

Ask a Question
  • Are the plugs tamper resistant?

    Yes, the outet is Tamper Resistant (TR).
